| 1. WORKING SIZE | X-1300* Y-2500* Z-300MM |
|---|---|
| 2. MACHINE POWER | 6KW OR 7.5HP |
| 3. Z-TRANSMISSION | 25MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI TAIWAN |
| 4. TABLE STRUCTURE | CAST STEEL |
| 5. BED STRUCTURE | T-SLOT ALUMINIUM TABLE WITH HARD PVC |
| 6. SPINDLE POWER | 3.7 KW. AIR COOL HSD ITALIAN |
| 7. SPINDLE SPEED | 18000 RPM AIR/MIN AIR COOLING |
| 8. MAX AIR MOVE SPEED | 30000MM/MIN |
| 9. MAX WORKING SPEED | 20000MM/MIN |
| 10. X/Y-TRANSMISSION | TAIWAN 1.25M HELICAL RACK GEARS FOR XY AXIS, |
| 11. GUIDE RAIL | LM GUIDE RAIL 20 / MM HIWIN MADE IN GERMANY |
| 12. DRIVE | STEPPER / AC HYBRID SERVO |
| 13. MOTOR | STEPPER / AC HYBRID SERVO |
| 14. CONTROLLER | RICH AUTO DSP A11S |
| 15. MAIN SWITCH | OMRON- MADE IN GERMANY |
| 16. ELECTRONICS | SCHNEIDER & SIEMENS MADE IN GERMANY |
| 17. MACHINE ACCURACY | <0.01 MM |
| 18. INVERTER | RITUO & BEST VDF |
| 19. PROGRAM | G-CODE PROGRAM |
| 20. VOLTAGE | 1 PHASES 220AC / 3 PHASES 380AC |
| 21. SOFTWARE | ARTCAM, ASPIRE, ARTCUT |
| 22. OIL PUMP | MANUAL LUBRICATION SYSTEM |
| 23. GROSS WEIGHT | 1500KG |
| Dimensons | Description |
| 24. ACCESSORIES | 20 PC BITS, SPANNER FULL SET ADJUSTMENT FEET SCREW, FULL SET SPINDLE NUT*1PC 2PC. SENSOR. |

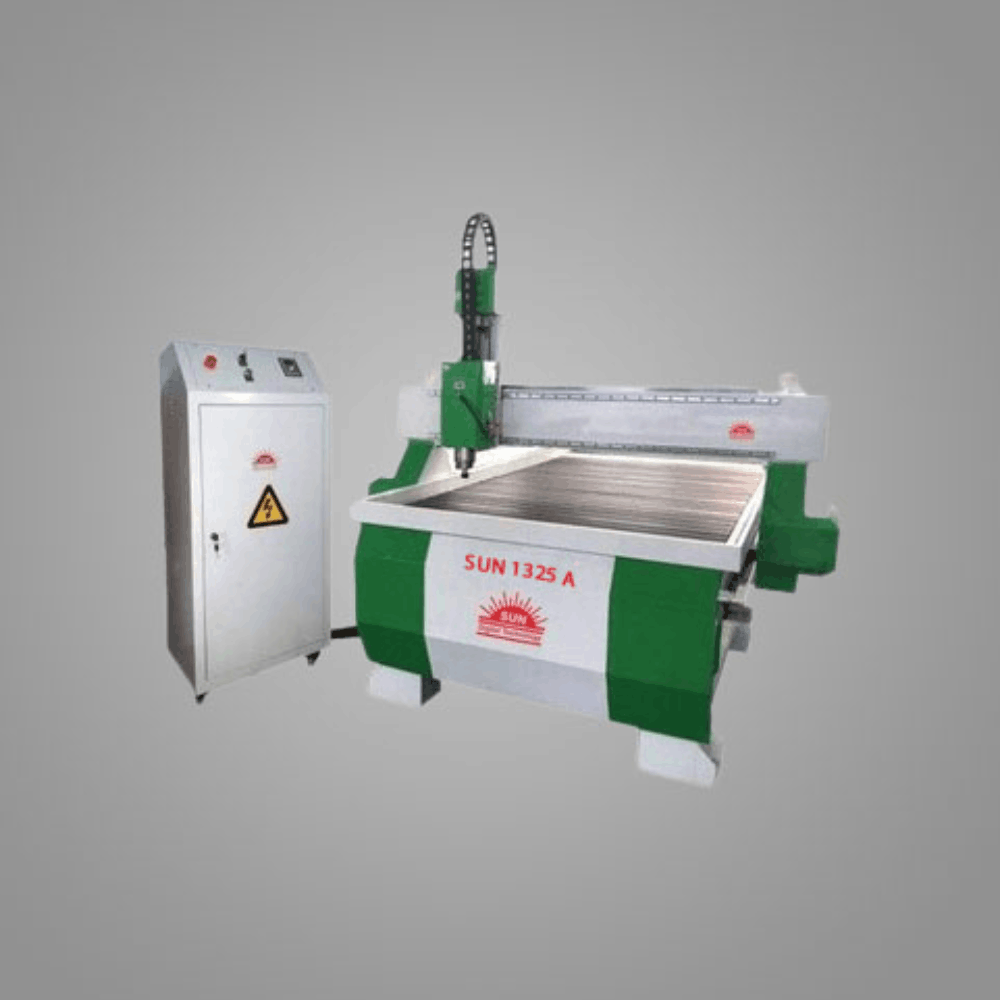

Wood CNC Machine Model S-1325-A
-8%
Original price was: ₹599,000.00.₹549,000.00Current price is: ₹549,000.00.
This Machine Working on:
Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving.
