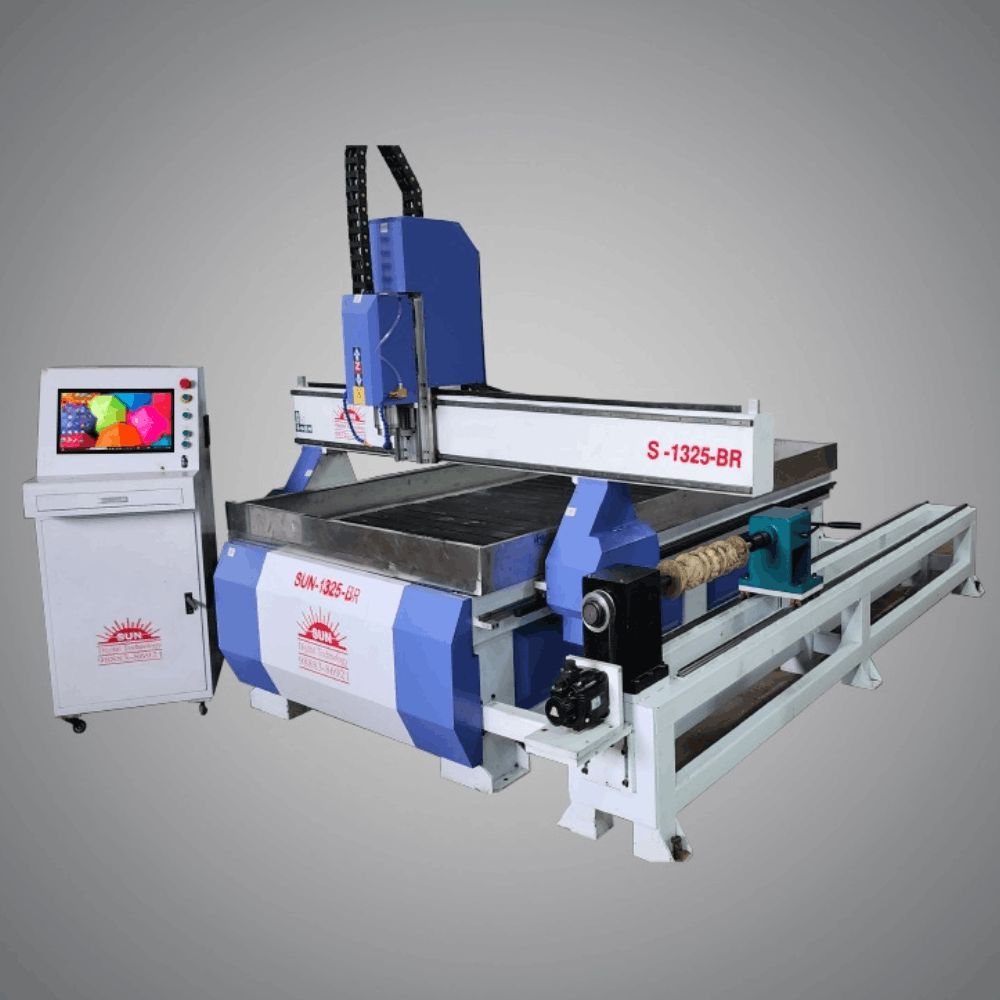

CNC Router Machine with Rotary Model S-1325-BR

CNC Router Machine with Rotary Model S-1325-BR

Original price was: ₹749,000.00.Current price is: ₹699,000.00.

This Machine Working on:
Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Brass

Get 10% OFF



Category:
DimensonsDescription
WORKING SIZEX-1300* Y-2500* Z-300MM
MACHINE POWER7KW OR 9HP
Z-TRANSMISSION TAIWAN 25MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI
TABLE STRUCTURECAST STEEL
BED STRUCTURE T-SLOT ALUMINIUM TABLE WITH HARD PVC
SPINDLE POWER3.7 KW. AIR COOL HSD ITALIAN
SPINDLE SPEED18000 RPM/MIN AIR COOLING
MAX AIR MOVE SPEED30000MM/MIN
MAX WORKING SPEED20000MM/MIN
X/Y-TRANSMISSIONTAIWAN 1.25M HELICAL RACK GEARS FOR XY AXIS,
GUIDE RAILLM GUIDE RAIL 20 / MM HIWIN MADE IN GERMANY
DRIVESTEPPER / AC HYBRID SERVO
MOTORSTEPPER / AC HYBRID SERVO
CONTROLLER RICH AUTO DSP A11S
MAIN SWITCHOMRON- MADE IN GERMANY
ELECTRONICSSCHNEIDER & SIEMENS MADE IN GERMANY
MACHINE ACCURACY<0.01 MM
INVERTER RITUO & BEST VDF
PROGRAMG-CODE PROGRAM
VOLTAGE1 PHASES 220AC / 3 PHASES 380AC
SOFTWAREARTCAM, ASPIRE, ARTCUT
OIL PUMPMANUAL LUBRICATION SYSTEM
GROSS WEIGHT1500KG
ACCESSORIES20 PC BITS, SPANNER FULL SET ADJUSTMENT FEET SCREW, FULL SET SPINDLE NUT*1PC 2PC. SENSOR,
