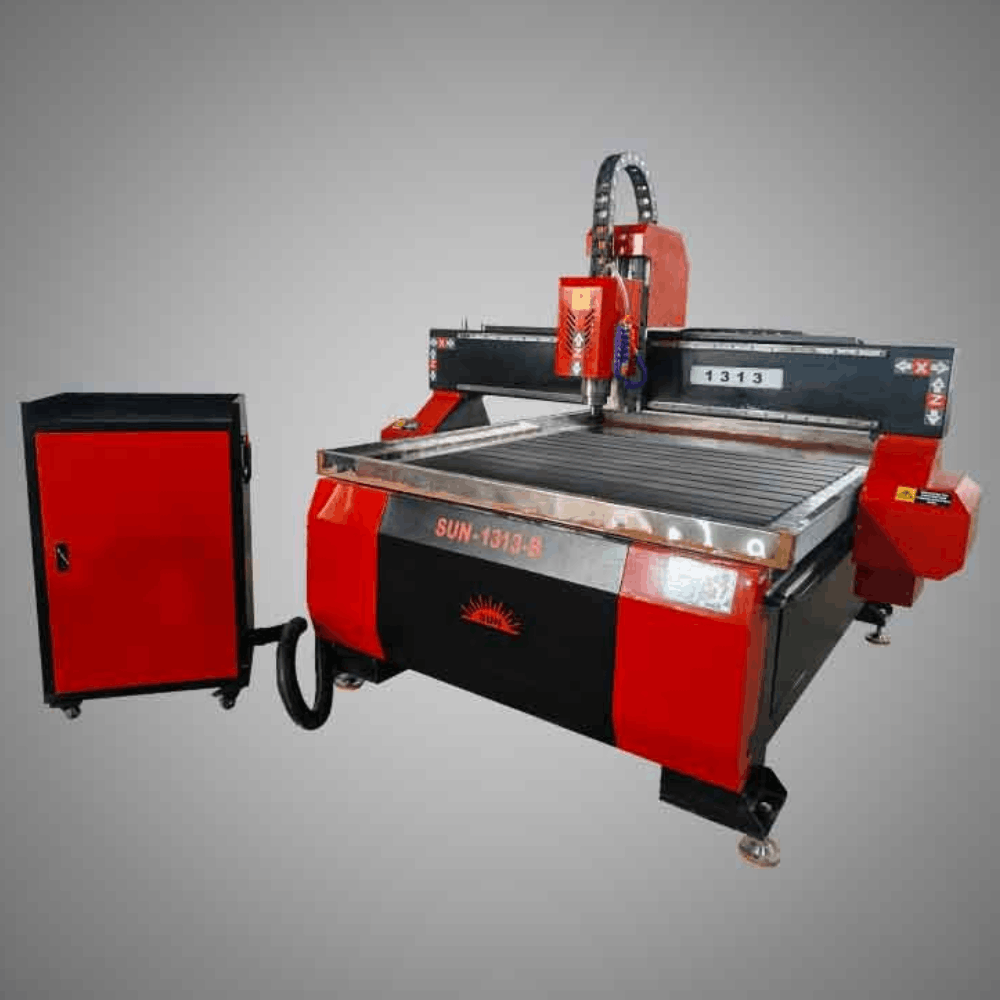

MULTI PURPOSE CNC ROUTER MODEL: S-1313-B
₹349,000.00
This Machine Working on:
Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Bras
Add to cart
Buy Now
| Dimensons | Description |
|---|---|
| 1. WORKING SIZE | X-1300* Y-1300* Z-300MM |
| 2. MACHINE POWER | 5KW, 6.5HP |
| 3. Z-TRANSMISSION | 25MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI |
| 4. TABLE STRUCTURE | CAST STEEL |
| 5. BED STRUCTURE | T-SLOT ALUMINIUM TABLE WITH HARD PVC |
| 6. SPINDLE POWER | 3.2 KW. WATER COOL |
| 7. SPINDLE SPEED | WATER 24000RPM/MIN |
| 8. MAX AIR MOVE SPEED | 30000MM/MIN |
| 9. MAX WORKING SPEED | 12000MM/MIN |
| 10. X/Y-TRANSMISSION | 1.25M HELICAL RACK GEARS FOR XY AXIS, |
| 11. GUIDE RAIL | LM GUIDE RAIL 20 / MM |
| 12. DRIVE | STEPPER |
| 13. MOTOR | STEPPER |
| 14. CONTROLLER | RICH AUTO DSP A11S |
| 15. MAIN SWITCH | OMRON |
| 16. ELECTRONICS | SCHNEIDER & SIEMENS |
| 17. MACHINE ACCURACY | <0.01 MM |
| 18. INVERTER | RITUO & BEST VDF |
| 19. PROGRAM | G-CODE PROGRAM |
| 20. VOLTAGE | 220V / 1 PHASES / 50HZ |
| 21. SOFTWARE | ARTCAM, ASPIRE, ARTCUT |
| 22. OIL PUMP | MANUAL LUBRICATION SYSTEM |
