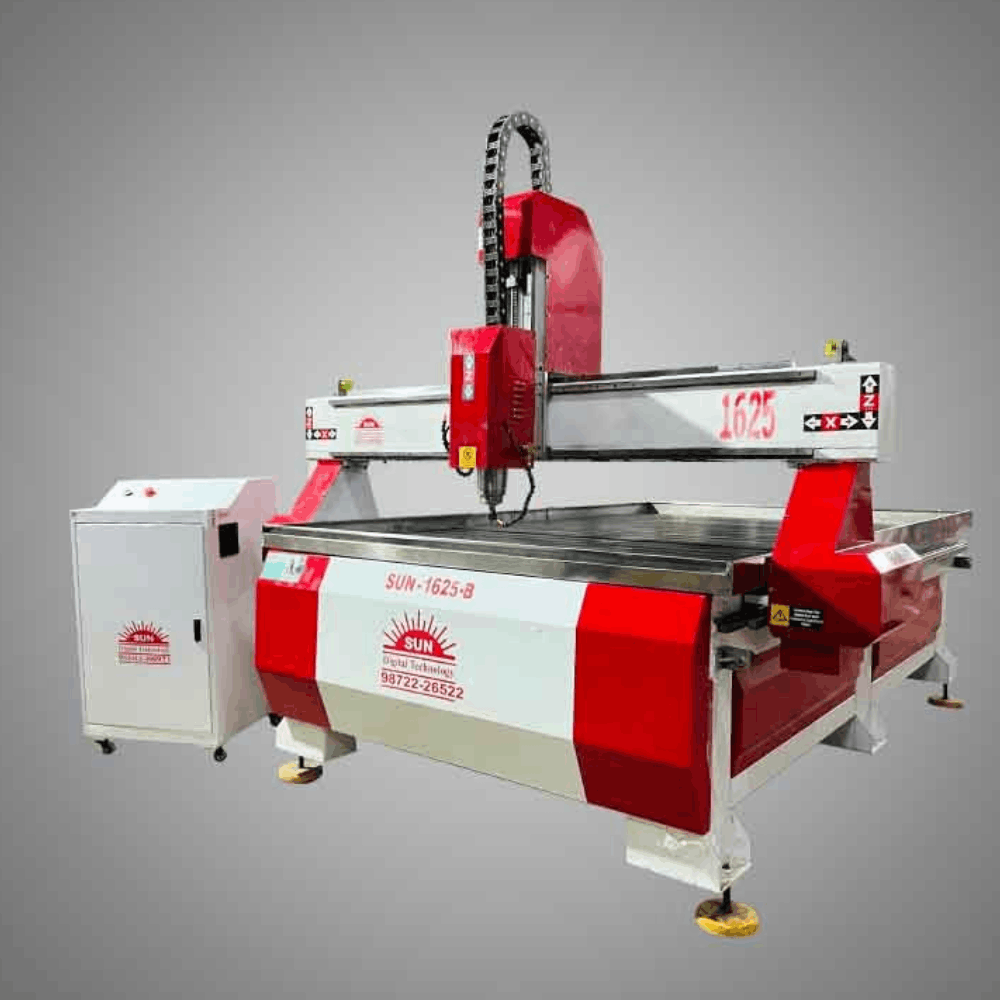

Multi Purpose CNC Router Model S-1625-B

Name: Multi Purpose CNC Router Model S-1625-B
SKU: 2050
Availability: InStock

Original price was: ₹725,000.00.Current price is: ₹699,000.00.

This Machine Working on:

Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Brass

Category: CNC Router Machine

Dimensons	Description
WORKING SIZE	X-1300* Y-2500* Z-300MM / 8X5.5 FEET
MACHINE POWER	6KW OR 7.5HP
Z-TRANSMISSION	TAIWAN 25MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI
TABLE STRUCTURE	CAST STEEL
BED STRUCTURE	T-SLOT ALUMINIUM TABLE WITH HARD PVC
SPINDLE POWER	3.7 KW. WATER COOL HSD ITALIAN
SPINDLE SPEED	24000RPM/MIN WATER COOLING
MAX AIR MOVE SPEED	30000MM/MIN
MAX WORKING SPEED	20000MM/MIN
X/Y-TRANSMISSION	TAIWAN 1.25M HELICAL RACK GEARS FOR XY AXIS,
GUIDE RAIL	LM GUIDE RAIL 20 / MM HIWIN MADE IN GERMANY
DRIVE	STEPPER / AC HYBRID SERVO
MOTOR	STEPPER / AC HYBRID SERVO
CONTROLLER	RICH AUTO DSP A11S
MAIN SWITCH	OMRON- MADE IN GERMANY
ELECTRONICS	SCHNEIDER & SIEMENS MADE IN GERMANY
MACHINE ACCURACY	<0.01 MM
INVERTER	RITUO & BEST VDF
PROGRAM	G-CODE PROGRAM
VOLTAGE	1 PHASES 220AC / 3 PHASES 380AC
SOFTWARE	ARTCAM, ASPIRE, ARTCUT
OIL PUMP	MANUAL LUBRICATION SYSTEM
GROSS WEIGHT	1500KG
ACCESSORIES	20 PC BITS, SPANNER FULL SET ADJUSTMENT FEET SCREW,FULL SET SPINDLE NUT*1PC 2PC. SENSOR, 2PC WATER PUMP
