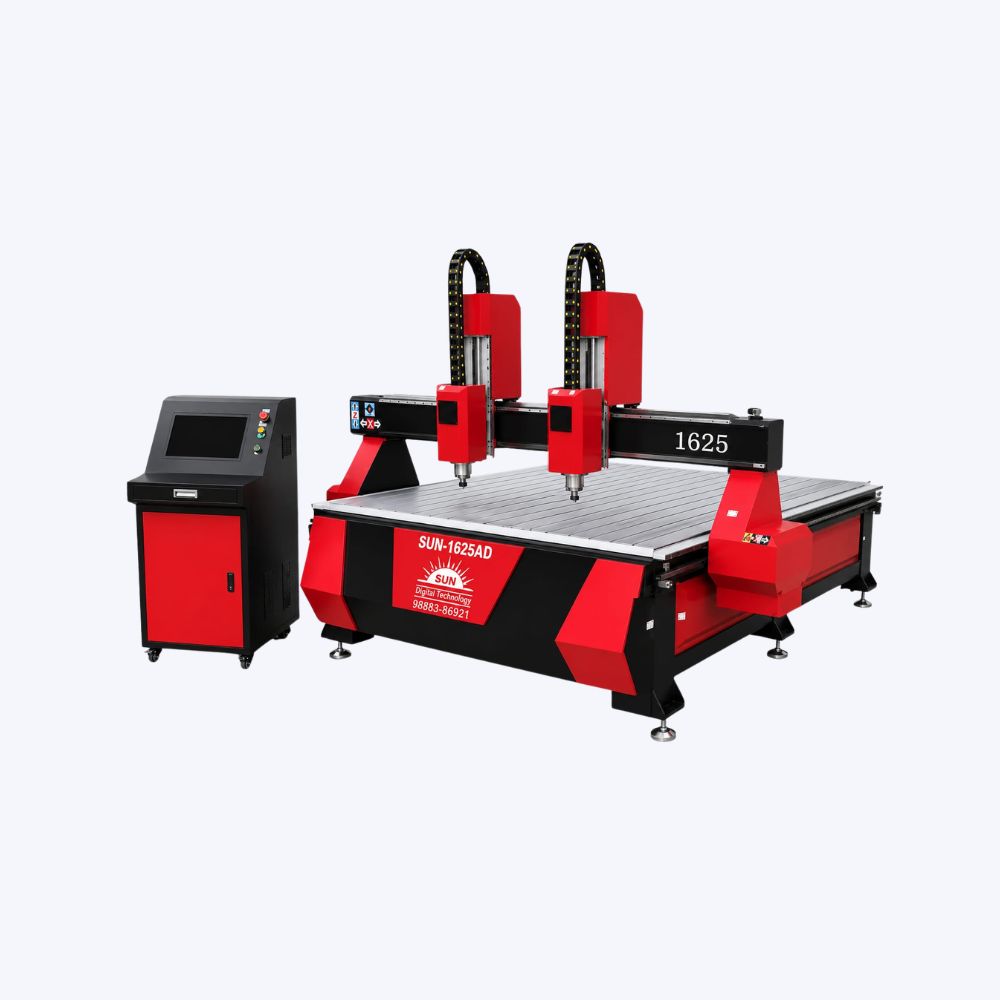

CNC Router Machine Model: S -1325 AD+ (Plus) Dual Head

CNC Router Machine Model: S -1325 AD+ (Plus) Dual Head

Original price was: ₹650,000.00.Current price is: ₹549,000.00.

This machine is working on:
Glass, Wood, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving.

Get 10% OFF

Category:
DimensonsDescription
Working Size 8 x 4 = 8x5 = 10x5 feet
Machine Power 8 kw or 9.5 hp
Z-Transmission Taiwan 25mm Z Ball Screw Drive with
Break System-TBI
Table Structure Cast Steel
Bed Structure T-Slot Alluminium Table with hard pvc
Spindle Power Two Spindle 3.5kw / 5.5kw / 6kw Air Cool HSD Italian / HQD
Spindle Speed 24000 / 18000 RPM
Max Air Move Speed 35000 MM/RPM
Max Working Speed 30000 MM/RPM
XY-Transmission Taiwan 1.25mm Helical Rank Gear XY Axis
Guide Rail LM Guide Rail 20mm Made in Germany
Drive Full Servo Drive
Motor Full Servo Motor with Planetary Gear Box
Controller Rich Auto DSP A11S
Main Switch Omron Made in Germany
Electronics Schneider & Siemens Made in Germany
Machine Accuracy <0.01 mm
Inverter Rituo & Best VDF
Program G-Code Program
Voltage 1 Phase 220AC / 3 Phases 380AC
Software Artcam, Catcam, Autocut
Oil Pump Manual Lubrication System
Gross Weight 1500 kg
Accessories 10 pc. Bits Spanner Full Set Adjustment Feet Screw,
Full Set Spindle Nut 1 pc. 2 pc. Sensor,
