| Dimensons | Description |
|---|---|
| 1. WORKING SIZE | X-1300* Y-1300* Z-200MM |
| 2. MACHINE POWER | 3.5 KW, 4 HP |
| 3. Z-TRANSMISSION | 25MM Z BALL SCREW DRIVE WITH BREAK SYSTEM-TBI |
| 4. TABLE STRUCTURE | CAST STEEL |
| 5. BED STRUCTURE | T-SLOT ALUMINIUM TABLE WITH HARD PVC |
| 6. SPINDLE POWER | 2.2 KW. WATER COOL |
| 7. SPINDLE SPEED | 24000RPM/MIN WATER COOLING |
| 8. MAX AIR MOVE SPEED | 30000MM/MIN |
| 9. MAX WORKING SPEED | 12000MM/MIN |
| 10. X/Y-TRANSMISSION | 1.25M HELICAL RACK GEARS FOR XY AXIS, |
| 11. GUIDE RAIL | LM GUIDE RAIL 20 / MM |
| 12. DRIVE | STEPPER |
| 13. MOTOR | STEPPER |
| 14. CONTROLLER | RICH AUTO DSP A11S |
| 15. MAIN SWITCH | OMRON |
| 16. ELECTRONICS | SCHNEIDER & SIEMENS |
| 17. MACHINE ACCURACY | <0.01 MM |
| 18. INVERTER | RITUO & BEST VDF |
| 19. PROGRAM | G-CODE PROGRAM |
| 20. VOLTAGE | 220V / 1 PHASES / 50HZ |
| 21. SOFTWARE | ARTCAM, ASPIER, ARTCUT |
| 22. OIL PUMP | MANUAL LUBRICATION SYSTEM |

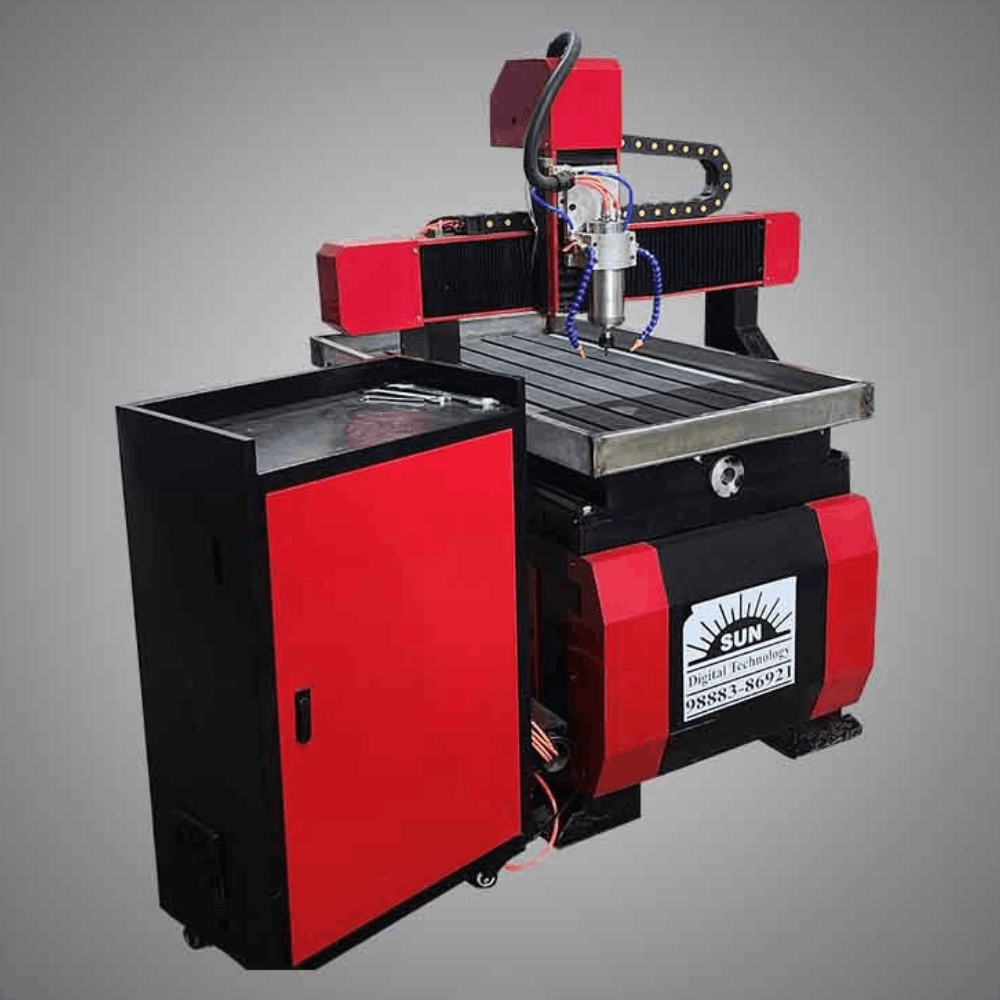

Multi Purpose CNC Router Model S-6090-B
Featured
₹299,000.00
This Machine Working on:
Glass, Woods, MDF, ACP Sheet, Acrylic Sheet, Hardwood, PVC, Sheet, Korean Cutting, 2D & 3D Carving. Marble, Granite, Metal, Aluminium, Copper, Bras
