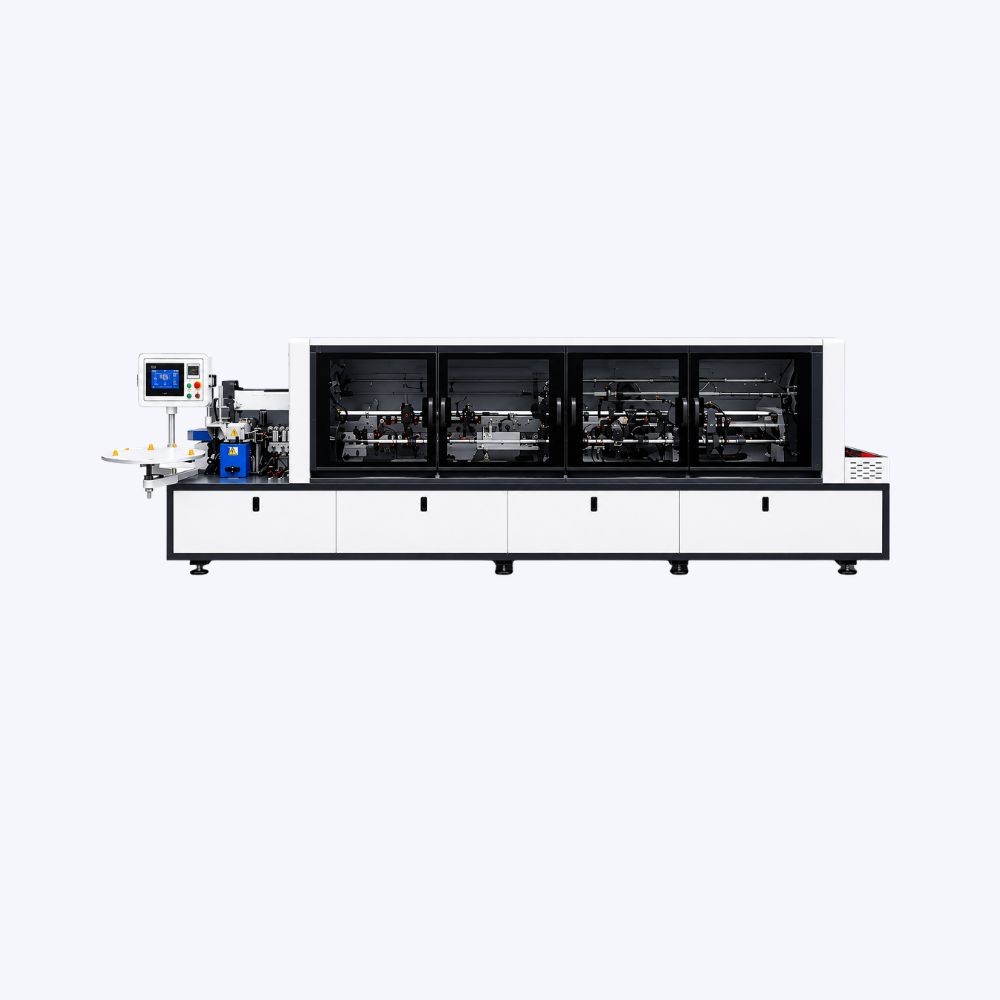

The S-368 J Automatic Edge Banding Machine is a premium industrial woodworking solution engineered for high-precision edge finishing and maximum production efficiency. Designed for furniture manufacturers, cabinet makers, and modular kitchen producers, this machine combines advanced automation with robust construction to deliver smooth, seamless, and professional-quality edge banding results.
Equipped with pre-milling, automatic gluing, end cutting, rough trimming, fine trimming, corner rounding, edge scraping, cleaning, and polishing functions, the S-368 J ensures superior edge quality on every panel. Its heavy-duty steel body provides exceptional stability during operation, while the Taiwan Delta PLC control system enables accurate control, reliability, and user-friendly operation.
The machine features adjustable feeding speeds, multiple pressure rollers for strong edge adhesion, and high-performance motors that ensure consistent productivity even in demanding manufacturing environments. Suitable for PVC, ABS, acrylic, veneer, and melamine edge tapes, the S-368 J is ideal for processing MDF, plywood, particle board, and laminated panels.
Key Features
- Pre-Milling Unit for smooth panel preparation
- Automatic Gluing and Edge Band Feeding
- End Cutting, Rough Trimming & Fine Trimming
- Corner Rounding for premium edge finishing
- Edge Scraping and Cleaning Device
- High-Gloss Polishing System
- Heavy-Duty Steel Frame Construction
- Taiwan Delta PLC Control System
- Schneider Electrical Components
- Multiple Speed Adjustment Options
- Six Pressure Rollers for strong bonding
Applications
- Modular Kitchen Manufacturing
- Office Furniture Production
- Wardrobe & Cabinet Manufacturing
- Interior Fit-Out Projects
- Commercial Furniture Factories
- Custom Woodworking Workshops
| Dimensons | Description |
|---|---|
| Pre-Milling Motor Power | 1.8kw*2 |
| Fine Trimming Motor Power | 0.55kw*2 |
| Rough Trimming Motor Power | 0.55kw*2 |
| Corner Trimming Motor | 0.3kw*2 |
| Conveyor Motor Power | 2.2kw |
| Total Power | 11.8kw |
| Dimensions | 6750mm* 750mm* 1600mm |
| Gluing Motor Power | 0.37kw |
| End Cutting Motor Power | 0.37kw*2 |
| Polishing Motor Power | 0.18kw*2 |
| Heating Motor Power | 1.5kw |
| Feeding Speed | 15/8/22 m/min |
| Working Voltage | 3 Phase 380v 60 hz |
| Weight | 2500kg |
