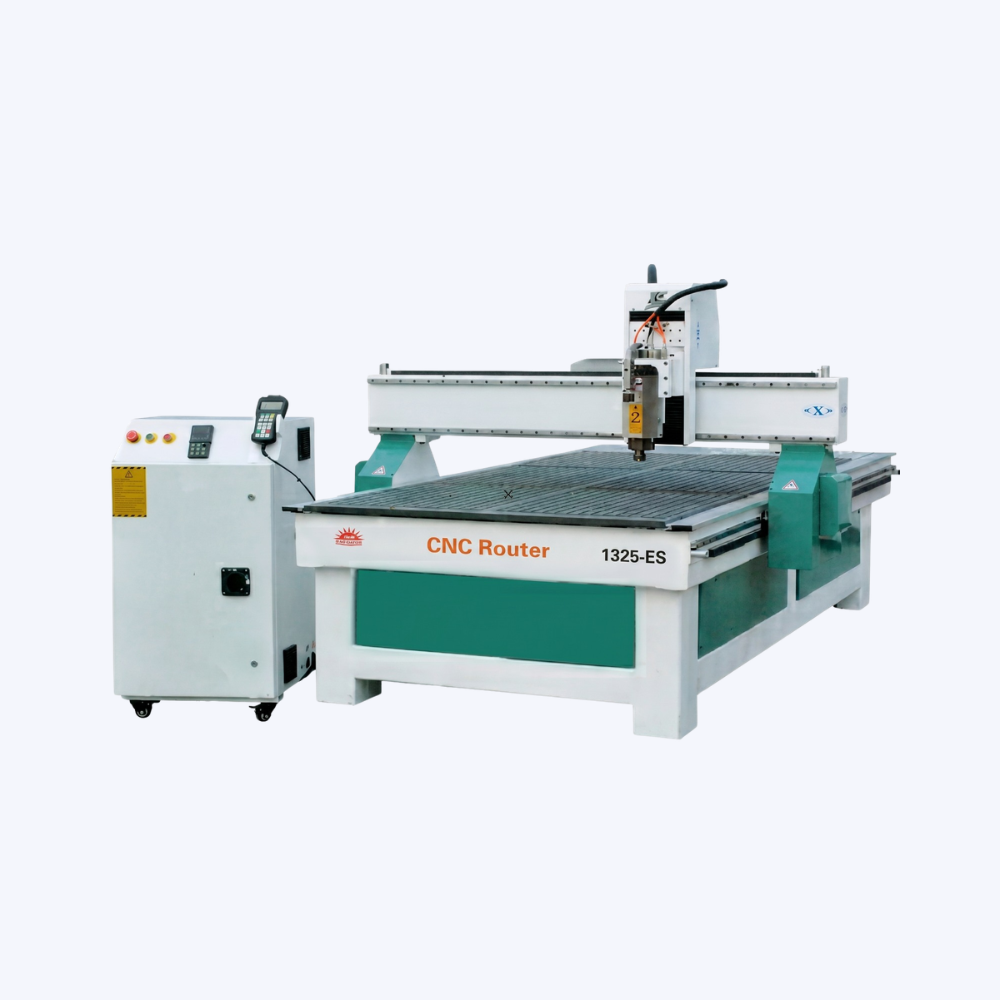

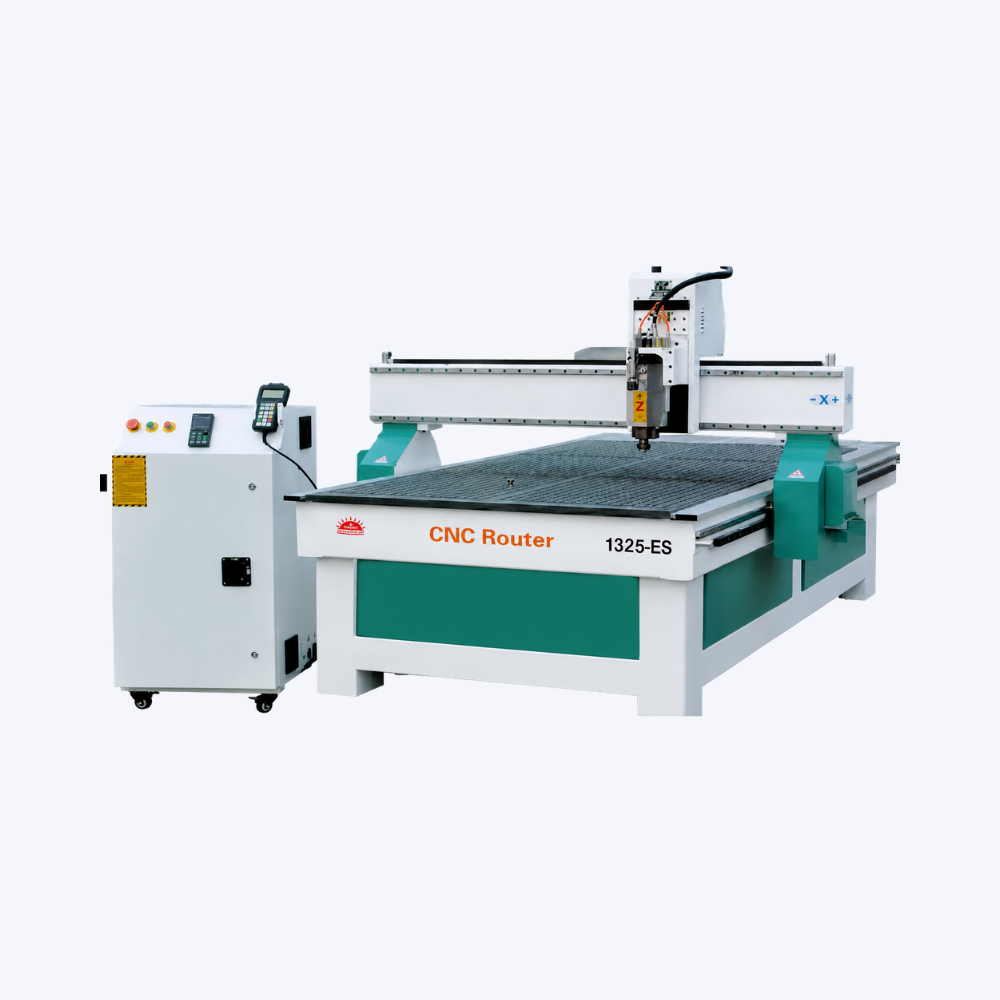

The CNC Router Machine Model S-1325ES is a high-performance industrial router designed for precision cutting, engraving, carving, and milling applications. Built with a robust cast steel frame and advanced motion components, this machine delivers excellent stability, speed, and accuracy for woodworking, acrylic, PVC, MDF, aluminum composite panels, foam, and other non-metal materials. Its powerful spindle, high-speed operation, and durable construction make it an ideal solution for furniture manufacturers, sign makers, interior decorators, and industrial fabrication units.
Equipped with premium Hiwin guide rails, a Yako drive system, and an optional Italian HSD spindle, the S-1325ES ensures smooth movement, consistent performance, and long service life. The machine is available in multiple working sizes to suit different production requirements and supports both air-cooled and water-cooled spindle options.
Key Features
- Heavy-duty cast steel machine structure for maximum durability
- Multiple working area options: 8×4 ft, 4×4 ft, and 2×3 ft
- Powerful 5 kW machine power
- Premium Italian HSD spindle options (3.5 kW / 4.5 kW / 6.0 kW)
- High-speed routing from 18,000–24,000 RPM
- T-slot aluminum vacuum table with hard PVC surface
- Hiwin 20 mm guide rails for precise and smooth movement
- Reliable Yako drive system with stepper motor
- Air cooling or water cooling spindle options
- Suitable for continuous industrial production
Applications
- Wood carving and engraving
- Modular furniture manufacturing
- MDF and plywood cutting
- Acrylic sheet cutting
- PVC and WPC board machining
- Sign board production
- Interior decoration panels
- Foam and plastic engraving
- ACP sheet cutting
- Pattern and prototype making
| Dimensons | Description |
|---|---|
| Working Area | 8×4 ft / 4×4 ft / 2×3 ft |
| Machine Power | 5 kW |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Aluminum Table with Hard PVC |
| Spindle | 3.5 kW / 4.5 kW / 6.0 kW HSD Italian |
| Cooling Type | Air Cooling / Water Cooling |
| Routing Speed | 18,000 – 24,000 RPM |
| Motor | Stepper Motor |
| Drive | Yako Drive |
| Guide Rail | Hiwin 20mm (Made in Germany) |
| XY Transmission | Taiwan 1.25 Module Helical Rack Gear |
| Z Transmission | Taiwan 25mm Ball Screw with Brake System (TBI) |
| Max Moving Speed | 15,000 mm/min |
| Max Working Speed | 12,000 mm/min |
| Control System | DSP Rich Auto A11S |
| Warranty | 1 Year |
| Voltage | Single Phase AC 220V / Three Phase AC 380V |
| Accuracy | < 0.01 mm |
| Inverter | Rituo & Best VFD |
| Program | G-Code Program |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Weight | 1150 kg |
