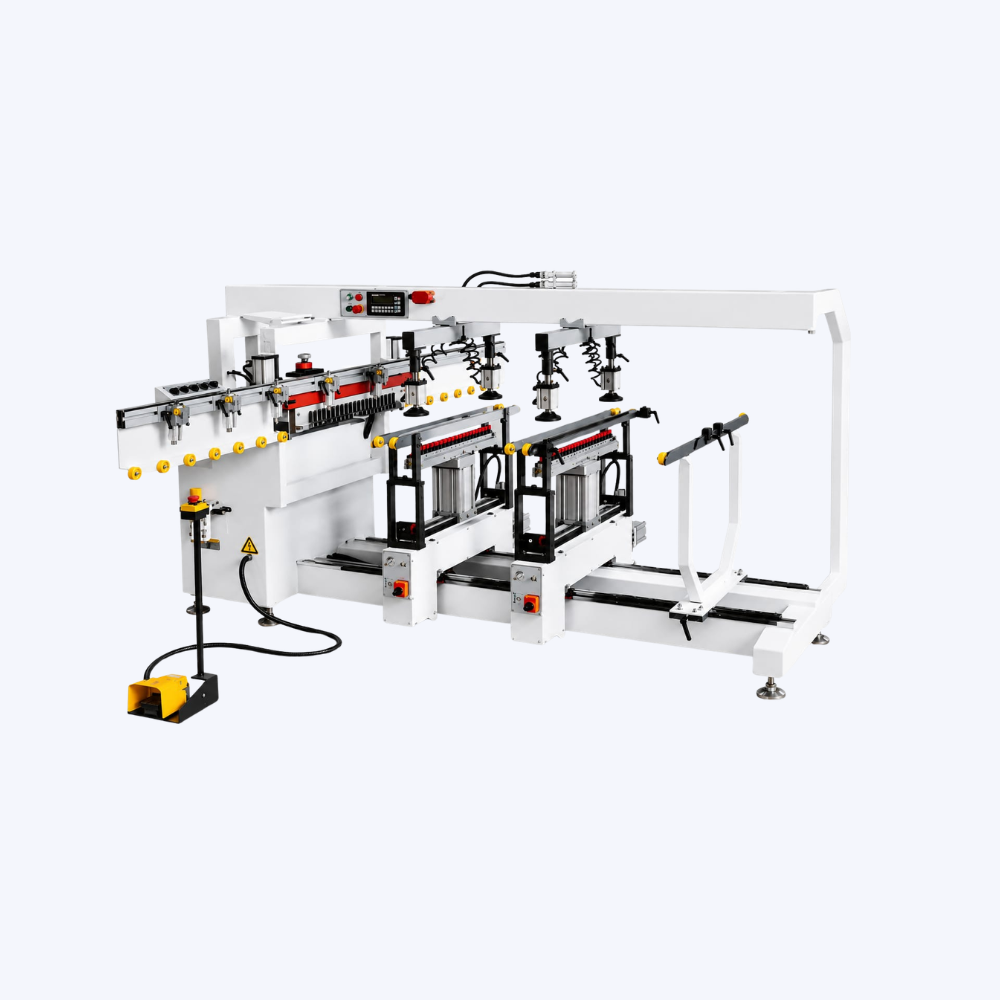

The RD 3 Head Multi Boring Row Drill Machine is a high-performance woodworking drilling solution engineered for fast, accurate, and high-volume furniture production. Equipped with a three-head drilling system and an advanced touch-screen digital control panel, this machine enables simultaneous horizontal and vertical drilling, significantly increasing productivity while maintaining exceptional precision.
Designed with a heavy-duty reinforced frame, precision aluminum guide rails, and premium pneumatic components, the RD 3 Head delivers smooth operation, reliable performance, and long service life. It is an ideal solution for modular furniture manufacturers, cabinet makers, wardrobe producers, and woodworking industries requiring consistent, high-speed panel drilling.
The machine is suitable for drilling MDF, plywood, particle board, laminated panels, solid wood, and engineered wood, making it a versatile addition to any modern furniture production facility.
Key Features
- Three-head multi-row drilling system for maximum productivity
- Simultaneous drilling operations for faster production
- Touch-screen digital control for easy programming and operation
- Heavy-duty reinforced steel body for vibration-free performance
- Precision aluminum guide rails for accurate positioning
- High-speed drilling up to 2800 RPM
- Adjustable drilling depth and hole spacing
- High-quality pneumatic system for smooth operation
- Designed for continuous industrial use
- Easy maintenance with durable industrial-grade components
Applications
- Modular kitchen manufacturing
- Wardrobe and cabinet production
- Office furniture manufacturing
- Furniture panel drilling
- Shelf pin hole drilling
- Door and cabinet assembly
- Mass production woodworking
- Interior furniture fabrication
- Knock-down (KD) furniture manufacturing
| Dimensons | Description |
|---|---|
| Working Stroke | 2400mm |
| Maximum Drilling Diameter | 35mm |
| Maximum Drilling Depth | 60mm |
| Number Of Drilling Shafts | 21x 3 rows |
| Rotate Speed | 2800r/min |
| Motor Power | 1.5KW |
| Slope Guiding Rule Lengh | 2500mm |
| Air Pressure | 0.6-0.8MPa |
| Control Screen | Touch screen control |
| Dimension | 3400×1200×1600mm |
| Working Voltage | 1 Phase 220v 50hz / 3 Phase 380v 60 hz |
| Weight | 1200kg |
| Tools | Send 6 sets of drill bits & drill |
