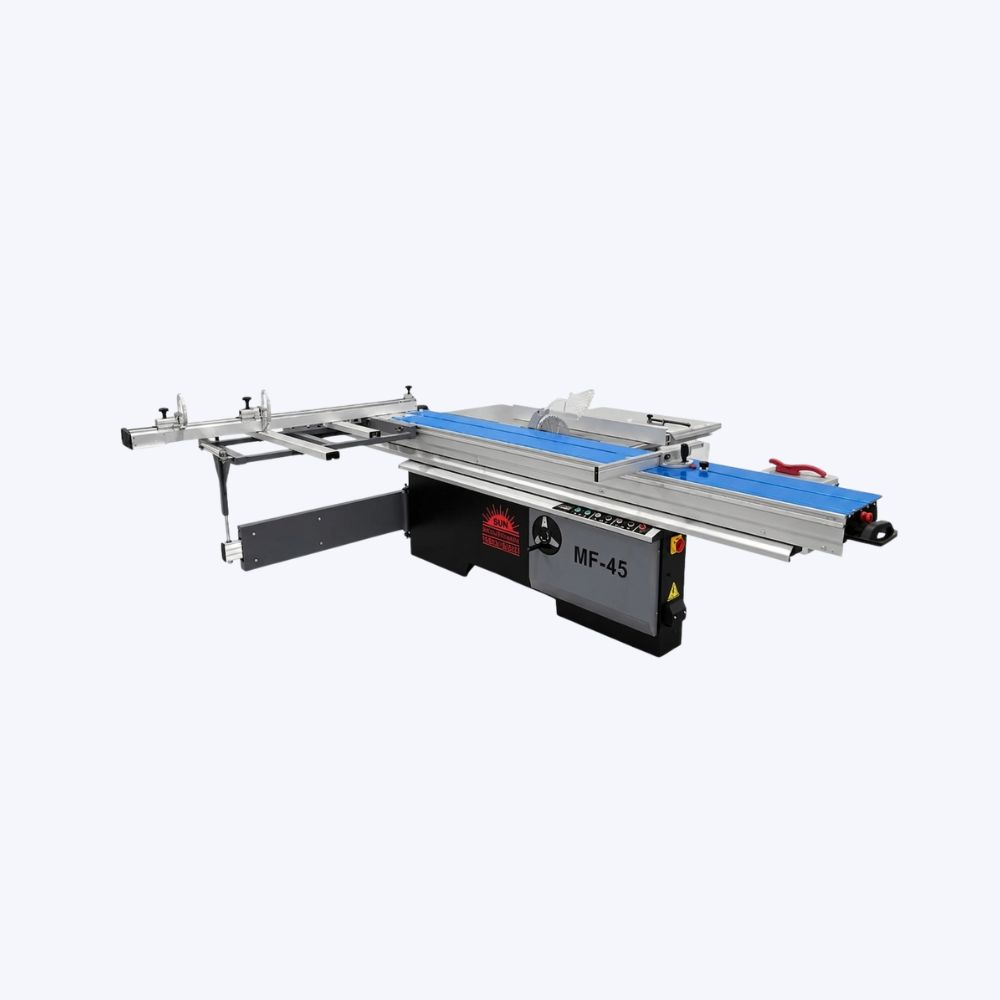

Sliding Table Saw Model: Sun – MF 45

The SUN MF-45 Sliding Table Saw is a professional woodworking machine designed for precision cutting of MDF, plywood, particle board, laminated sheets, hardwood, acrylic panels, and furniture boards. Built with a heavy-duty frame, precision sliding table, and powerful motor system, the MF-45 delivers smooth, accurate, and high-speed cutting performance for furniture manufacturers, cabinet makers, interior designers, and woodworking workshops.

Engineered for efficiency and durability, the machine features a robust sliding table mechanism, adjustable blade angles, and high-precision guide systems that ensure clean cuts and excellent finishing quality. The MF-45 is ideal for straight cutting, angle cutting, panel sizing, and large sheet processing applications.

Features

• Heavy-duty industrial-grade construction for long-term durability

• Precision sliding table for smooth and accurate material handling

• Adjustable blade tilt from 45° to 90°

• Powerful main saw motor for high-performance cutting

• Separate scoring blade for chip-free finishing on laminated panels

• High-precision guide rails and fence system

• Stable steel frame structure for vibration-free operation

• Easy-to-use control system with reliable electrical components

• Suitable for large panel and sheet processing

• Designed for furniture, cabinetry, and interior production industries

Applications

• MDF Panel Cutting

• Plywood Processing

• Modular Furniture Manufacturing

• Kitchen Cabinet Production

• Wardrobe Manufacturing

• Interior Decoration Projects

• Acrylic Sheet Cutting

• Wooden Door Panel Processing

• Laminated Board Cutting

• Custom Furniture Production

Dimensons	Description
Prouduct Name	MF-45 Sliding Table Saw
Saw Blade Lifting Mode	Electric Lift
Saw Blade Angle	45 Deg.-90 Deg.
Main Saw Power	7.5 hp
Auxiliary Saw Power	1.25hp
Slide Table Size	3200 390mm
Maximum Sawing Length	3100mm
Maximum Cutting Width	1250mm
Maximum Sawing Thickness	80mm
Main Saw Shaft Speed	4000-6000r/min
Slot Saw Blade Rotating Speed	7000-8000r/min
Main Saw Blade Size	Outer Diameter 300mm/inner Diameter 30mm
Slot Saw Blade Size	Outer Diameter 120mm/inner Diameter 20mm
Spindle Diameter	30mm
Working Voltage	1 Phase 220v 50hz / 3 Phase 380v 60 hz
Dimensions	3250*1100*1200mm
