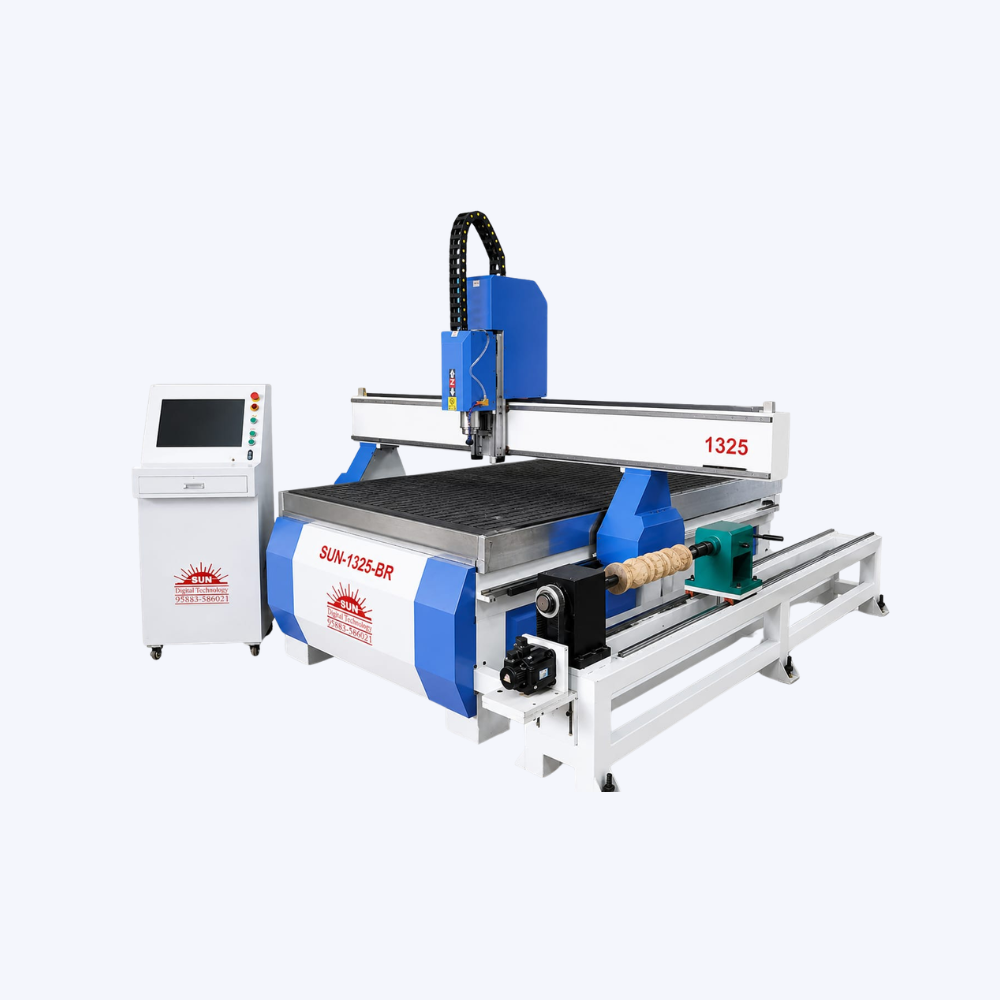

The S-1325 BR+ Plus Multipurpose CNC Router Machine with Rotary is an advanced industrial CNC solution designed for precision cutting, engraving, carving, and rotary machining. Equipped with a rotary attachment, this versatile machine can efficiently process both flat sheet materials and cylindrical workpieces such as wooden columns, balusters, chair legs, table legs, and decorative pillars.
Built with a heavy-duty steel structure and powered by a full servo drive system, the S-1325 BR+ Plus delivers exceptional accuracy, smooth motion, and reliable 24-hour performance. Its 5-axis compatible rotary system, powerful 3.5 kW / 5.5 kW air-cooled spindle, and precision transmission components make it ideal for furniture manufacturing, interior décor, signage production, woodworking, and custom fabrication.
Capable of machining a wide variety of materials including MDF, hardwood, plywood, acrylic, PVC, ACP sheets, aluminum, brass, copper, marble, granite, and glass, this CNC router offers unmatched flexibility for both 2D and 3D applications.
Key Features
- Multipurpose CNC router with integrated rotary attachment
- Ideal for flat panels and cylindrical woodworking applications
- High-precision 2D & 3D cutting, carving, engraving, and profiling
- Available working sizes: 8×4 ft, 8×5 ft, and 10×5 ft
- Powerful 3.5 kW / 5.5 kW air-cooled spindle
- Spindle speed up to 24,000 RPM
- Full servo motor system with planetary gearbox
- Taiwan helical rack & pinion drive for high-speed movement
- TBI ball screw Z-axis transmission with brake system
- Heavy-duty cast steel frame for vibration-free operation
- Machine accuracy of less than 0.01 mm
- Supports G-Code programming
- Compatible with ArtCAM, AutoCAD, Type3, and other CNC software
- Manual lubrication system for easy maintenance
Applications
- Wooden furniture manufacturing
- Decorative door and panel carving
- Wooden pillar and baluster production
- Chair and table leg turning
- CNC relief carving
- Interior decoration panels
- Modular kitchen components
- ACP and acrylic signage
- Nameplates and branding solutions
- Stone engraving and artistic carving
- Custom woodworking and industrial fabrication
| Dimensons | Description |
|---|---|
| Working Size | 8 x 4 = 8x5 = 10x5 feet |
| Machine Power | 7 kw or 9 hp |
| Z-Transmission | Taiwan 25mm Z Ball Screw Drive with Break System-TBI |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Alluminium Table with hard pvc |
| Spindle Power | Two Spindle 3.5kw / 5.5kw / 6kw Air Cool HSD Italian / HQD |
| Spindle Speed | 24000 / 18000 RPM |
| Max Air Move Speed | 35000 MM/RPM |
| Max Working Speed | 30000 MM/RPM |
| XY-Transmission | Taiwan 1.25mm Helical Rank Gear XY Axis |
| Guide Rail | LM Guide Rail 20mm Made in Germany |
| Drive | Full Servo Drive |
| Motor | Full Servo Motor with Planetary Gear Box |
| Controller | Rich Auto DSP A11S |
| Main Switch | Omron Made in Germany |
| Electronics | Schneider & Siemens Made in Germany |
| Machine Accuracy | <0.01 mm |
| Inverter | Rituo & Best VDF |
| Program | G-Code Program |
| Voltage | 1 Phase 220AC / 3 Phases 380AC |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Gross Weight | 1500 kg |
| Accessories | 10 pc. Bits Spanner Full Set Adjustment Feet Screw, Full Set Spindle Nut 1 pc. 2 pc. Sensor, 2 pc. Water Pump |
