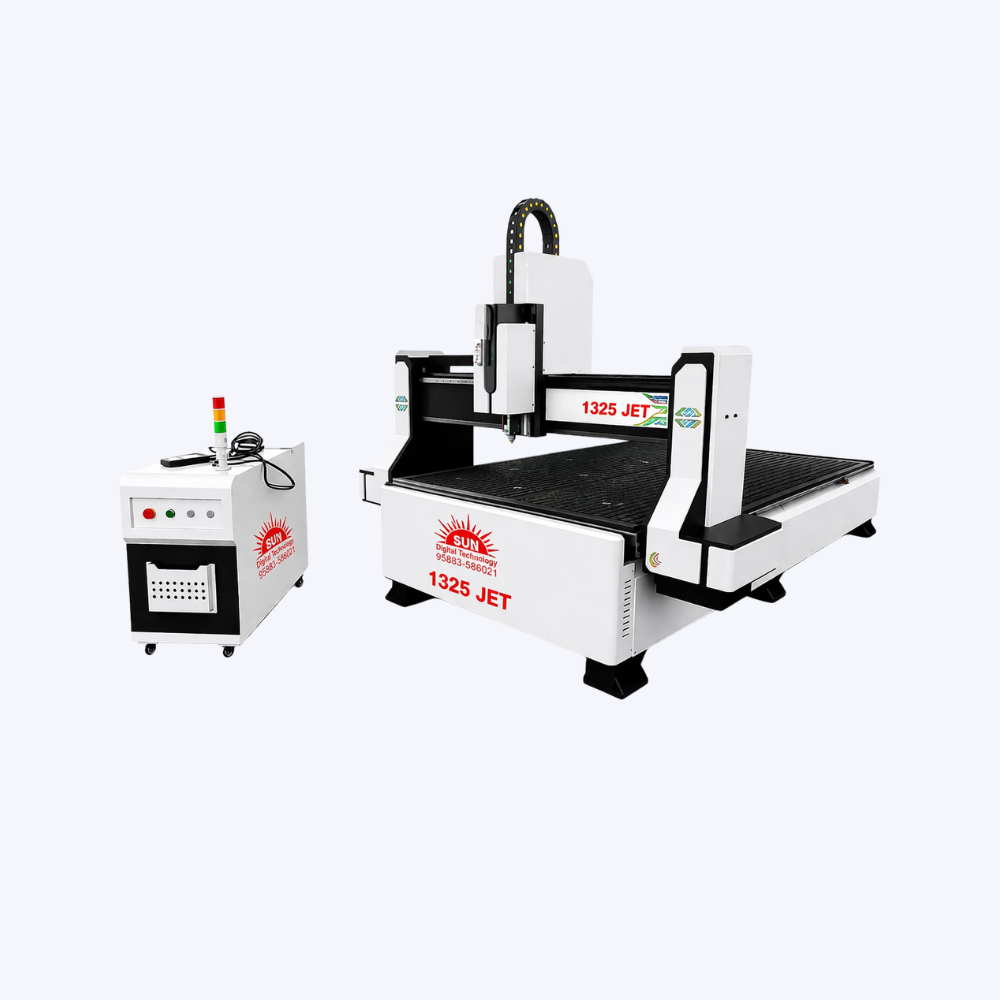

The S-1325 JET CNC Router Machine is a high-speed, industrial-grade CNC router engineered for precision cutting, engraving, carving, and profiling across a wide range of materials. Designed for 24-hour continuous operation, this machine combines robust construction, advanced servo technology, and high-performance components to deliver exceptional accuracy, speed, and reliability for woodworking, signage, advertising, and industrial manufacturing.
Built with a heavy-duty cast steel frame, precision HIWIN linear guide rails, and a full servo drive system, the S-1325 JET ensures smooth motion, vibration-free machining, and superior cutting quality. It is available with 6.0 kW air-cooled or 5.5 kW water-cooled HSD spindle options, making it suitable for demanding production environments.
The machine is capable of processing a wide variety of materials including MDF, plywood, hardwood, acrylic, PVC, ACP sheets, aluminum, brass, copper, marble, granite, glass, and composite panels, making it an ideal solution for furniture manufacturers, sign makers, interior designers, and fabrication industries.
Key Features
- Industrial CNC router designed for 24-hour continuous operation
- High-precision 2D & 3D cutting, carving, engraving, and profiling
- Available working sizes: 8×4 ft, 8×5 ft, and 10×5 ft
- 6.0 kW Air-Cooled or 5.5 kW Water-Cooled HSD spindle options
- High spindle speed up to 24,000 RPM
- Heavy-duty cast steel body for maximum stability
- Taiwan helical rack & pinion drive for fast and accurate movement
- HIWIN 20 mm linear guide rails for smooth positioning
- Full servo motor system with planetary gearbox
- Machine accuracy of less than 0.01 mm
- Supports G-Code programming
- Compatible with ArtCAM, AutoCAD, Type3, and other CNC software
- Manual lubrication system for low-maintenance operation
Applications
- Furniture manufacturing
- Modular kitchen production
- Wooden doors and decorative panels
- 2D & 3D relief carving
- Acrylic and ACP signage
- Nameplates and branding solutions
- Interior decoration
- Stone engraving
- Metal engraving
- Architectural components
- Industrial fabrication and custom woodworking
| Dimensons | Description |
|---|---|
| Working Size : | X-1300 x Y-2500mm 8x4 Feet / 8x5feet / 10x5 feet |
| Machine Power : | 7 Kw Or 8.5hp |
| Transmission : | Taiwan 25mm Z Ball Screw Drive With Break System-tbi |
| Table Structure: | Cast Steel |
| Bed Structure : | T-slot Aluminium Table With Hard Pvc |
| Spindle Power : | Spindle 6kw Air Cool / 5.5kw Water Cool (HSD Italy) HQD |
| Spindle Speed : | 24000 / 18000 rpm/min |
| Max Air Move Speed : | 40000mm/min |
| Max Working Speed : | 35000mm/min |
| X/y-Transmission : | Taiwan1.25 M Helical Rack Gears For Xy Axis |
| Guide Rail: | LM Guide Rail 20/mm Hiwin Made In Germany |
| Drive: | Full Servo Drive |
| Motor: | Full Servo Motor (1.5kw) With Planetary Gear Box |
| Controller: | Rich Auto DSP A11S / NK 105 G2 |
| Machine Accuracy: | <0.01 Mm |
| Inverter: | Rituo & Best VDF |
| Program: | G-Code Program |
| Voltage: | Single Phase / 3 Phases 380v / 50hz |
| Software : | Artcam, Catcam, Autocut |
| Oil Pump: | Manual Lubrication System |
| Accessories: | 10 Bits, Spanner Full Set Adjustment Feet Screw Full Set Spindle Nut *1pc pc,sensor. |
