| Dimensons | Description |
|---|---|
| Prouduct Name | MJ-45 Sliding Table Saw |
| Saw Blade Lifting Mode | Manual Lift |
| Saw Blade Angle | 45 Deg.-90 Deg. |
| Main Saw Power | 5.5 hp |
| Auxiliary Saw Power | 1.5 hp |
| Slide Table Size | 3000 370mm |
| Maximum Sawing Length | 3100mm |
| Maximum Cutting Width | 1250mm |
| Maximum Sawing Thickness | 80mm |
| Main Saw Shaft Speed | 4000-6000r/min |
| Slot Saw Blade Rotating Speed | 7000-8000r/min |
| Main Saw Blade Size | Outer Diameter 300mm/inner Diameter 30mm |
| Slot Saw Blade Size | Outer Diameter 120mm/inner Diameter 20mm |
| Spindle Diameter | 30mm |
| Working Voltage | 1 Phase 220v 50hz / 3 Phase 380v 60 hz |
| Dimensions | 3250*1100*1200mm |

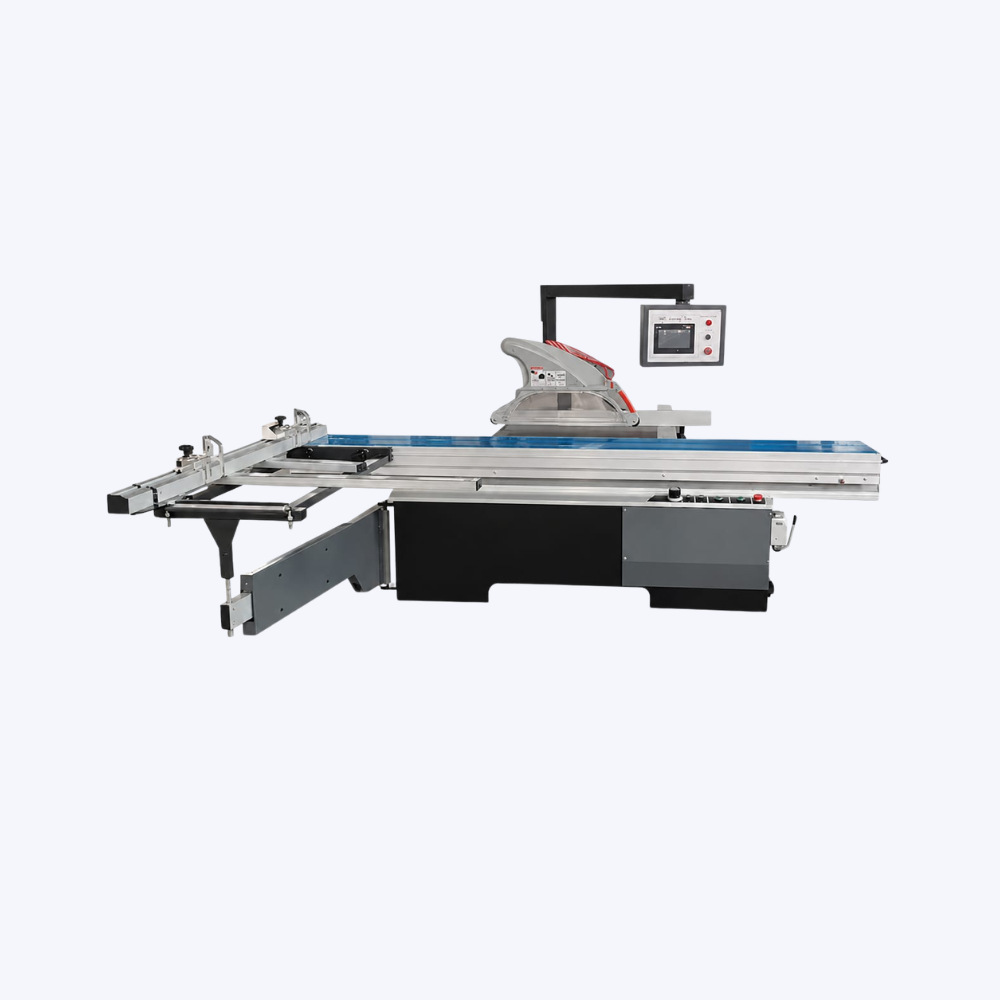

The SUN-55 Sliding Table Panel Saw is a high-performance woodworking machine designed for precise cutting of plywood, MDF, particle board, laminates, acrylic sheets, and solid wood panels. Built with a heavy-duty steel frame and precision-engineered sliding table, this machine delivers smooth operation, accurate cuts, and increased productivity for furniture manufacturers, modular kitchen units, interior contractors, and woodworking workshops.
Key Features
- Heavy-duty machine structure for vibration-free operation
- Precision aluminum sliding table for smooth panel movement
- Powerful main saw motor for high-speed cutting
- Scoring blade system for clean and chip-free cuts
- Adjustable blade tilt from 45° to 90°
- High cutting accuracy for professional woodworking applications
- Robust rip fence with fine adjustment mechanism
- Easy-to-operate control panel
- Suitable for continuous industrial production
- Designed for cutting large-size panels with maximum precision
Applications
- Modular Kitchen Manufacturing
- Wardrobe & Cabinet Production
- Office Furniture Manufacturing
- Wooden Door Production
- Interior Decoration Projects
- Plywood Cutting
- MDF & Particle Board Processing
- Laminate Sheet Cutting
- Furniture Factories & Workshops
